适用材料Applicable material
单螺杆体积式喂料器广泛适用于各种物料，包括树脂颗粒、树脂粉末、碳酸钙、滑石粉、氧化钛、炭黑等粉状、小球状、颗粒状的物料。

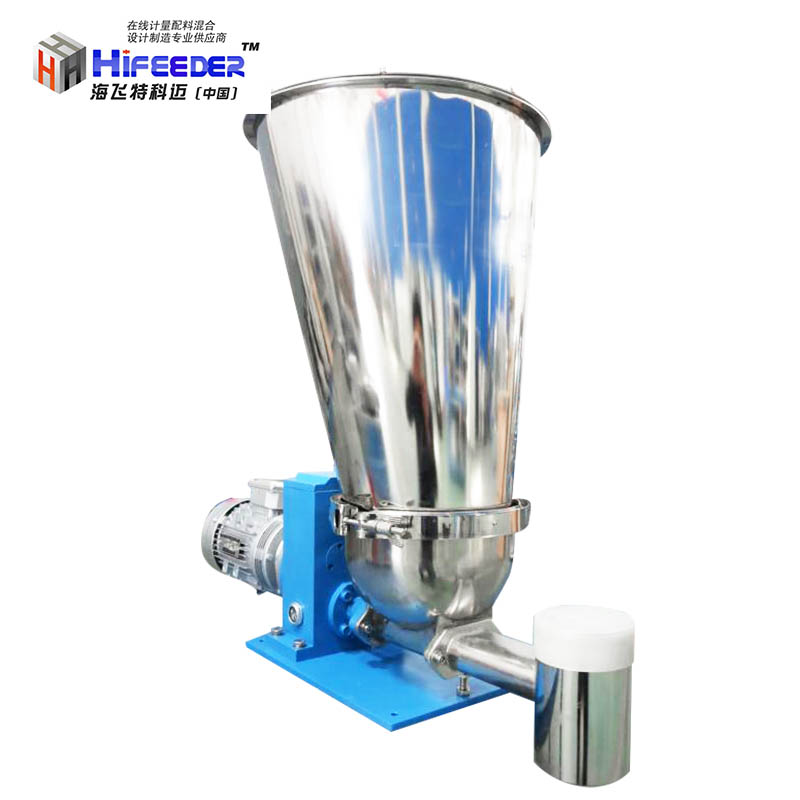

Single-screw volume feeders are widely used in a variety of materials, including resin particles, resin powder, calcium carbonate, talc, titanium oxide, carbon black and other powdery, small spherical, granular materials.
特点Characteristics
1、单螺杆喂料器安装在钢质底板上,螺杆具有可互换性。
2、所有与物料接触的部件均采用不锈钢制作，该喂料器易于清理或更换部件。
3、独特的球形斗减小了物料附着的可能性。
1. The single screw feeder is mounted on a steel base plate, and the screw is interchangeable.
2. All parts in contact with the material are made of stainless steel, which is easy to clean or replace parts.
3. The unique spherical bucket reduces the possibility of material attachment.
规格
|
型号 |
流量范围 Flow rate range |
料斗容量 Hopper capacity |
称量 Weigh capacity |
产品重量Feeder weight |
电源 Power supply |
|
HF-W-S32 |
2-10kg/h |
25L |
30kg |
约65（90）kg Approx65（90）kg |
380VAC,3phase,0.55kVA |
|
HF-W-S46 |
10-100kg/h |
50L |
50kg |
约67（92）kg Approx67（92）kg |
380VAC,3phase,0.75kVA |
|
HF-W-S70 |
100-500kg/h |
80L |
100kg |
约160（210）kg Approx160（210）kg |
380VAC,3phase,1.5kVA |
|
HF-W-S89 |
50-1500kg/h |
120L |
200kg |
约170（220）kg Approx170（220）kg |
380VAC,3phase,2.2kVA |
（ ）内为控制模块KB-2500G一体式的数据。 Specifications in parenthesis( )are for modeis unitized with control module KB-25000G
